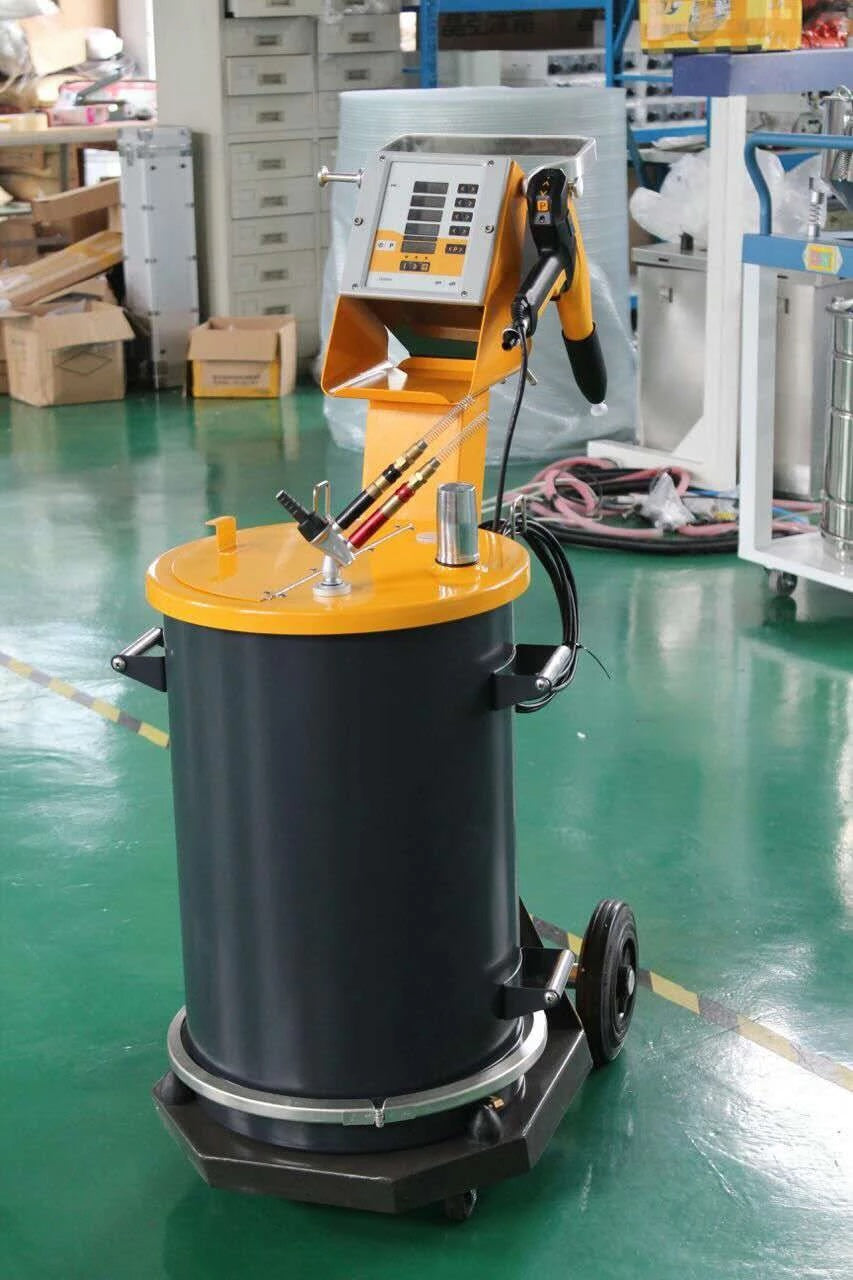

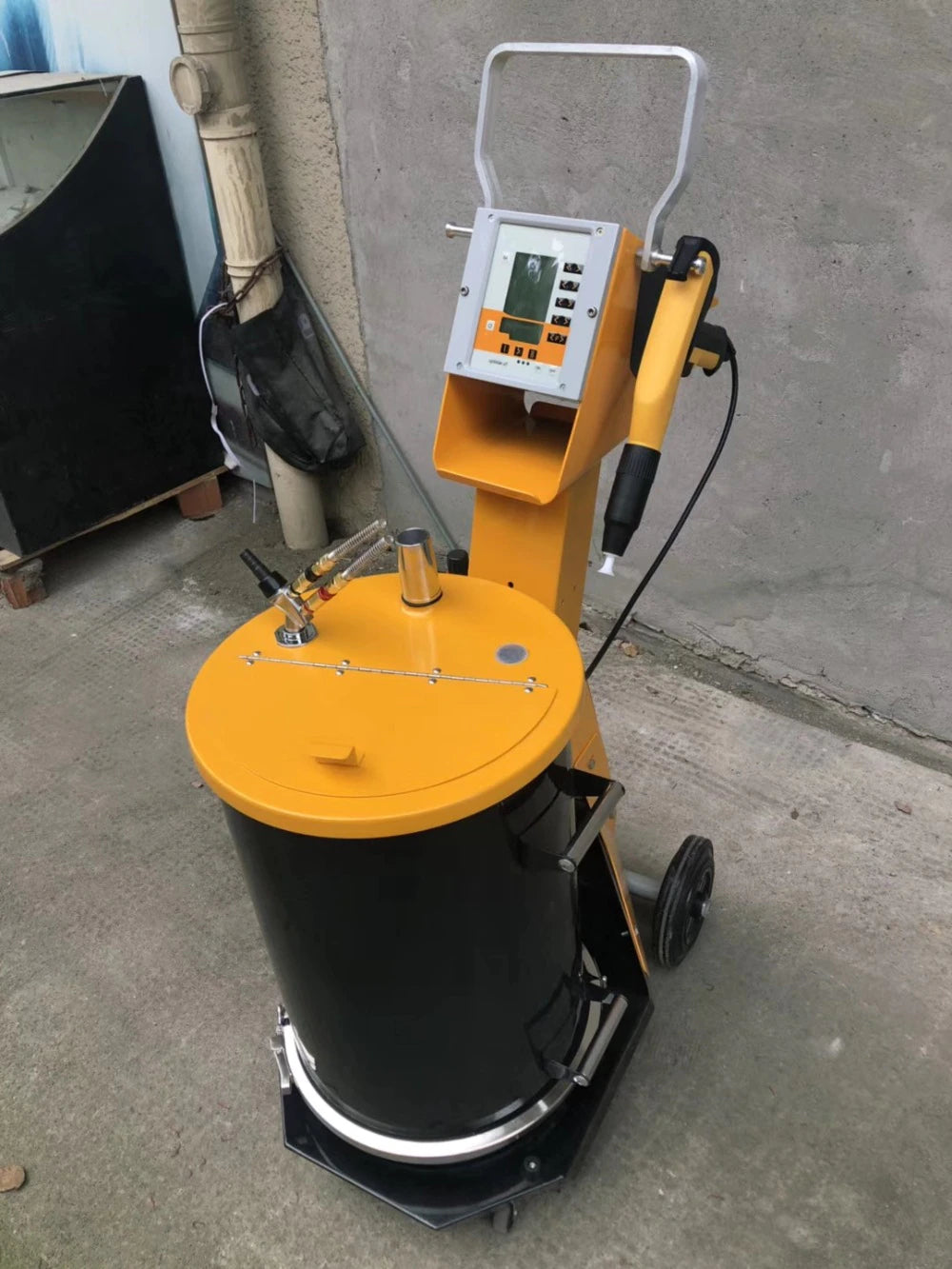

Hopper Fed Optistar Powder Coating Gun
- Regular price
- £1,995.00 GBP
- Regular price
-
- Sale price
- £1,995.00 GBP
Couldn't load pickup availability
Details
- Availability: In Stock
Description
Very similar to the UK's best selling powder coat gun Optiflex 2 (£4000) at more than half the price. These have been trialled for the past two years with excellent feedback from all customers. Ideal for all polyester and acrylic powders.
All spare parts are readily available in the UK.
Powder coat gun will arrive boxed and will require assembly. If you want to receive this pre assembled, please email us.
There is currently a 10-14 day lead time on all orders.
If you prefer box feed, this is available for an additional £480.
|
Nominal input voltage
|
110V240VAC
|
||
|
Frequency
|
50-60Hz
|
||
|
Connected load (without vibrator)
|
40 VA
|
||
|
Nominal output voltage (to the gun)
|
eff.10 V
|
||
|
Nominal output current (to the gun)
|
max. 1.2 A
|
||
|
Connection for rinsing function (valve)
|
24 VDC max. 3 W
|
||
|
Temperature range
|
0°C - +40°(+32°F - +104°F)
|
||
|
Max. surface temperature
|
120 °C (+248 °F)
|
||
|
Approvals
|
II 3 D IP54 120 °C
|
|
Pneumatical Data
|
|||
|
MAX.input pressure
|
10bar
|
||
|
MIN.input pressure
|
6bar
|
||
|
Input pressure (Dynamic based on pressure regulator setting)
|
5.5 bar / 80 psi
|
||
|
Max.water vapor content of the compressed air
|
1.3g/Nm³
|
||
|
Max.oil vapor content of the compressed air
|
0.1mg/Nm³
|
||
|
Max.compressed air consumption
|
8Nm³/h
|
||
|
Dimensions
|
|||
|
Width
|
460mm
|
||
|
Depth
|
832mm
|
||
|
Height
|
1105mm
|
||
|
Weight
|
42kg
|
||
|
Processible Powders
|
|||
|
Plastic powder
|
yes
|
||
|
Metallic powder
|
yes
|
||
|
Enamel powder
|
no
|
||
